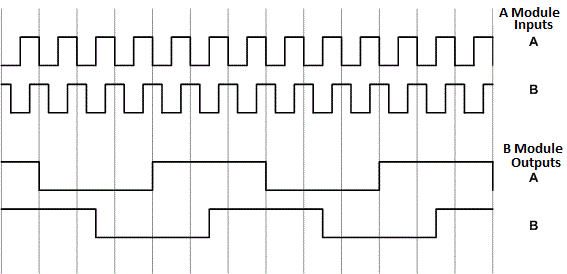

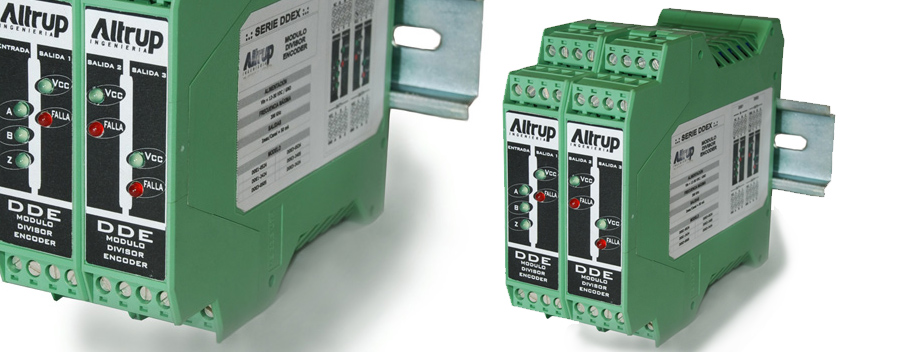

The Integer Divider Module (DEE) allows the user to reduce the number of pulses per encoder revolution. The dividing number is selected through DIPSWITCH in the range 1 to 4096.

In addition, the DEE allows the change of levels, the outputs multiplication, or signal regeneration when the cable length is very extensive.

• Eliminates mechanical vibration counting errors.
• Optical isolation between input and outputs.
• Push-pull outputs with short circuit protection.
• HTL output power range with reverse polarity protection.
• Pluggable terminal blocks.
